导向轮校直轴承 | 轮胎成型机专用

这条产品线下的系列

点击下面任意系列查看型号。具体型号、尺寸、替代参考号，发图纸或型号给我们。

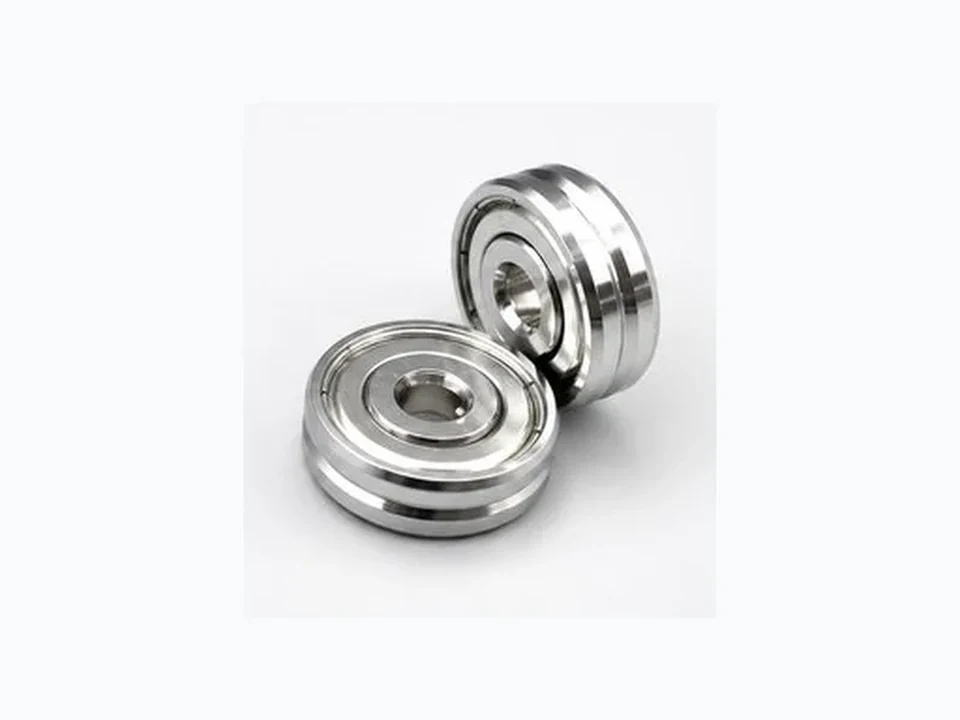

V-Slot / U-Slot Series⌄

30.M.13 / 30.M.14 / 420-M.294 series

校直轮 / 轮胎子午线轴承 — V-groove and U-groove profiles for tire building and straightening machines. Same product as "tire meridian bearings" (校直轮 = 轮胎子午线轴承, two names).

型号	d × D × B (mm)
30.M.13.236-00	8×22×7LLHB 30.M.13.236-00
30.M.13.236-01	10×30×8LLHB 30.M.13.236-01
30.M.13.236-02	10×30×14LLHB 30.M.13.236-02
30.M.13.236-05	8×22×7LLHB 30.M.13.236-05
30.M.13.236-06	8×22×7LLHB 30.M.13.236-06
30.M.14.078-00	4×13×5LLHB 30.M.14.078-00
30.M.14.078-01	4×13×5LLHB 30.M.14.078-01
30.M.14.078-02	4×16×5LLHB 30.M.14.078-02

16 models in this series · 询价 →

WR / International Series⌄

WR13 · WR16 · WR22 · WR31 · WR40

International-standard straightener bearings. WR prefix designates wire/tube straightening applications. Compatible with global OEM machine specs.

型号	d × D × B (mm)
-01 (WR13)	4×13×5LLHB -01 (WR13)
-02 (WR16-A)	4×16×5LLHB -02 (WR16-A)
-04 (WR16-B)	4×16×5LLHB -04 (WR16-B)
-05 (WR16-C)	4×16×5LLHB -05 (WR16-C)
-07 (WR16-D)	4×16×5LLHB -07 (WR16-D)
-09 (WR22-A)	8×22×7LLHB -09 (WR22-A)
-10 (WR22-B)	8×22×7LLHB -10 (WR22-B)
-12 (WR22-C)	8×22×7LLHB -12 (WR22-C)

14 models in this series · 询价 →

Tire Meridian (Building Machine)⌄

Tire building drum · Tread machines

Bearings for tire building machines — drum support, tread winding, bead setting. Custom profiles and compounds to match specific tire machine brands. (= 校直轮, same product family)

Same models as V-Slot/U-Slot and WR series above. Tire meridian bearings and 校直轮 are the same product. Send your machine model or drawing. 询价 →

Aligner Bearings⌄

Tire building aligner · Drawing-based

Tire alignment and forming equipment. Precision-ground profile for consistent tire geometry. Specific references confirmed per inquiry.

Send us your drawing or OEM machine model for aligner bearings. 询价 →

Tensioner Bearings⌄

PA139 · 139PSA · DK13740 series

Tensioner bearings for belt, chain and timing systems. Common references: PA139, 139PSA, DK13740 and variants.

Send us your part number for this series. 询价 →

Custom Guide Wheels⌄

Drawing-based · Profile matching

Send your drawing, sample or machine spec. We manufacture custom profiles, compounds and tolerances for OEM guide wheel applications.

Custom — send your drawing. 询价 →

Tensioner Bearings ⌄

PA139 · 139PSA · DK13740 series

Send us your part number or drawing for this series. 询价 →

Tensioner bearings for belt, chain and timing systems. Common references: PA139, 139PSA, DK13740 and variants. Crowned or flat profile, with or without flange. Also used in conveyor and packaging machinery.

Custom Guide Wheels ⌄

Drawing-based · Profile matching

Send us your part number or drawing for this series. 询价 →

Send your drawing, sample or machine spec. We manufacture custom profiles, compounds and tolerances for OEM guide wheel applications.

可选配置（询价时确认）

Profile: Custom / Standard
Material: Bearing Steel / Custom compounds
Sourcing: Drawing-based quotation

具体配置按报价单确认。我们不说每个型号每个配置都有现货——核实后再报。
